Organic Film Bending Tester ELS-100FM
Product Details
Tests electrical and optical characteristics
when
applying bending load to flexible devices.

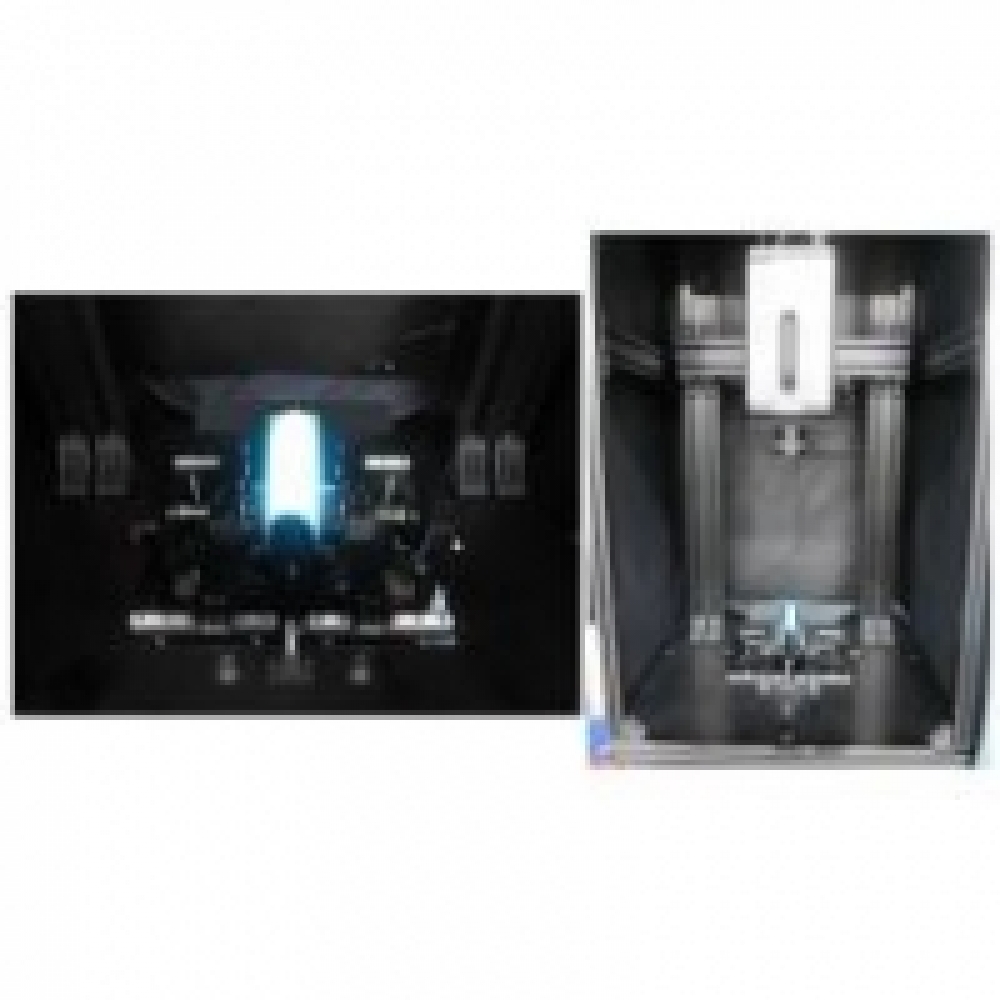

The ELS-100FM is a device capable of testing
electrical and optical characteristics when applying bending load to flexible
devices.
The bending load drive is a ROBO cylinder
with a dedicated controller (capable of adjusting stroke and speed). Bending
load is applied by the vertical motion of the ROBO cylinder.
The I-V measuring instrument is a Keithley
Instruments Source Meter 2400. The spectral radiance meter is a Konica Minolta
CS-2000.
[Features]
○Capable of testing electrical and optical characteristics
→When applying bending load to flexible devices.
○Bending load applied by the vertical motion of the ROBO cylinder
○Measurement items
→No. of bends―Electrical current (mA)―Voltage (V)―Luminance (cd/m²)―Spectrum
Product Specifications
[Specifications]
○I-V measuring instrument: Keithley Instruments Source Meter 2400
○Spectral radiance meter: Konica Minolta CS-2000
○Bending load drive
→ROBO cylinder with a dedicated controller (capable of adjusting stroke and speed)
○Measurement items
→No. of bends―Electrical current (mA)―Voltage (V)―Luminance (cd/m²)―Spectrum
○Power source: One AC100V / 15A
○External dimensions /Weight: 600mm wide x 600mm long x 2,000mm tall /
Approx. 80Kg
