Product Details

Excellent track record! Accurately measures changes in voltage, luminance and spectrum! Easy-to-operate software.

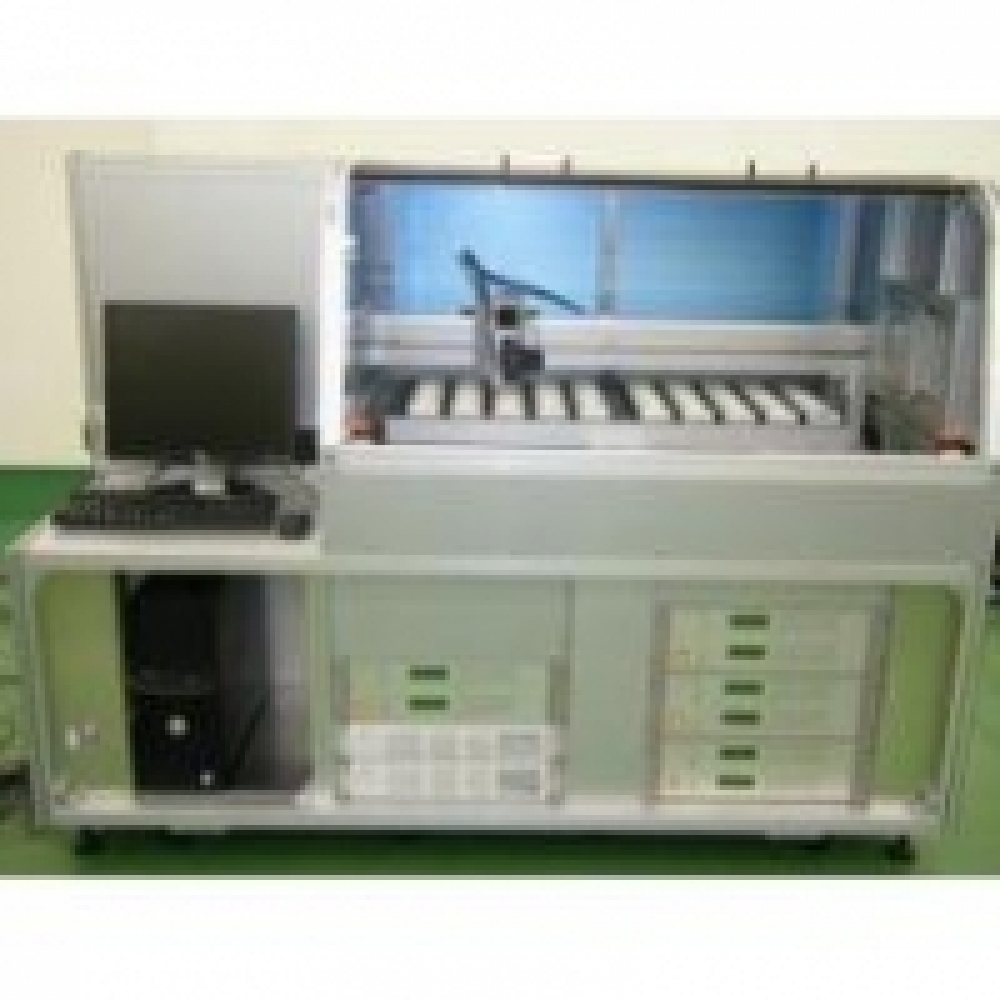

The “ELS-100” is a testing system that detects changes over time through scans of voltage, luminance and spectrum by lighting up organic EL elements over a long period of time.

Capable of accurately ascertaining the emission efficiency, spectrum, chromaticity, etc. of organic EL elements. Easy to operate and manage using the included software.

[Features]

■Excellent track record among display manufacturers and materials manufacturers!

■Customizable to match workplaces

■Generous maintenance and follow-up service system

Product Specifications

[Specifications]

[Constant electrical current drive]

Electrical current value

→Range 1: 0.01mA～1.00mA（Set
width 0.01mA / Measurement width 0.001mA）

→Range 2: 1.1mA～50.0mA（Set
width 0.01mA / Measurement width 0.01mA）

○Voltage value:
Max. 40V（Measurement resolution 10mV）

[Movement Stage]

Detection sensor unit (X axis): Luminance gauge,spectrometer, camera

Sample holder stage (Y axis): One-touch detachment

[Measurement Items]

Time passed (H), electrical current value (mA), voltage (V), luminance (cd/m2), spectrum
