Product Details

A development-type liquid crystal injector capable of automatically injecting liquid crystal into small cells.

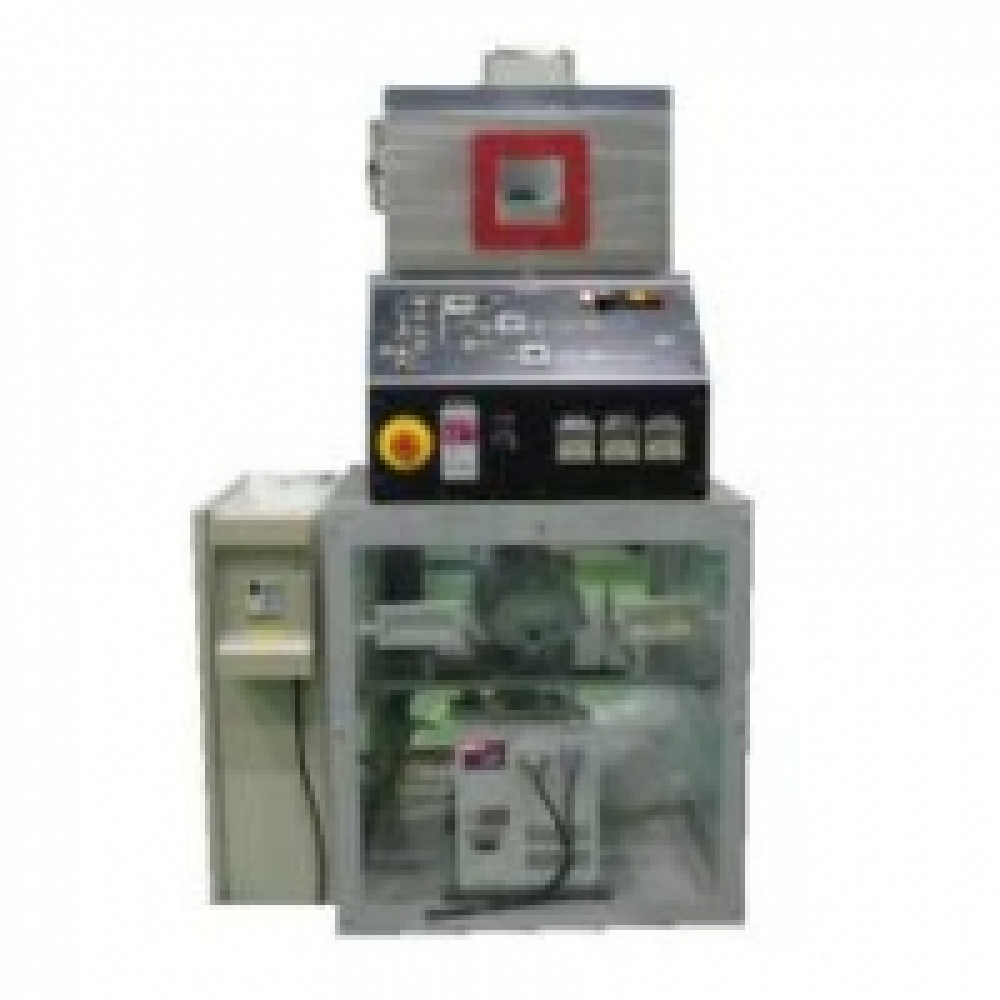

The Liquid Crystal Injector ECM02TYPE is a device for injecting liquid crystal into empty cells.

It enables easy injection of liquid crystal into empty cells just by setting an empty cell cassette and liquid crystal into the vacuum chamber and commencing automatic operation.

Relay control enables automatization of all operations from degassing to liquid crystal injection, and it is perfect for injecting liquid crystal into small cells.

Chamber pressure during degassing and injection can be set separately.

[Features]

○Device for injecting liquid crystal into empty cells

○All operations from degassing to liquid crystal injection are automatized.

○Perfect for experimentally injecting liquid crystal into small cells

○Chamber pressure during degassing and injection can be set separately.

Product Specifications

○Compatible work size: Max. 200mm wide × 100mm tall

○Device external dimensions: 840mm wide × 800mm long × 1305mm tall

○Device weight: Approx. 300kg

○Utilities

→Power source: Φ1 AC100V 15A

→Compressed air: 0.6MPa or higher; 5NL/min *Connecting parts: Φ6

→Nitrogen: 0.6MPa or higher; 50NL/min *Connecting parts: Φ6

→Exhaust: 0.7CMM

○Max. vacuum level: 0.4Pa

○Liquid crystal vertical drive: Speed control motor-driven

○Chamber specifications: Stainless steel chamber with transparent PVC lid

.
