Product Details

Perfect for injecting liquid crystal into small cells.

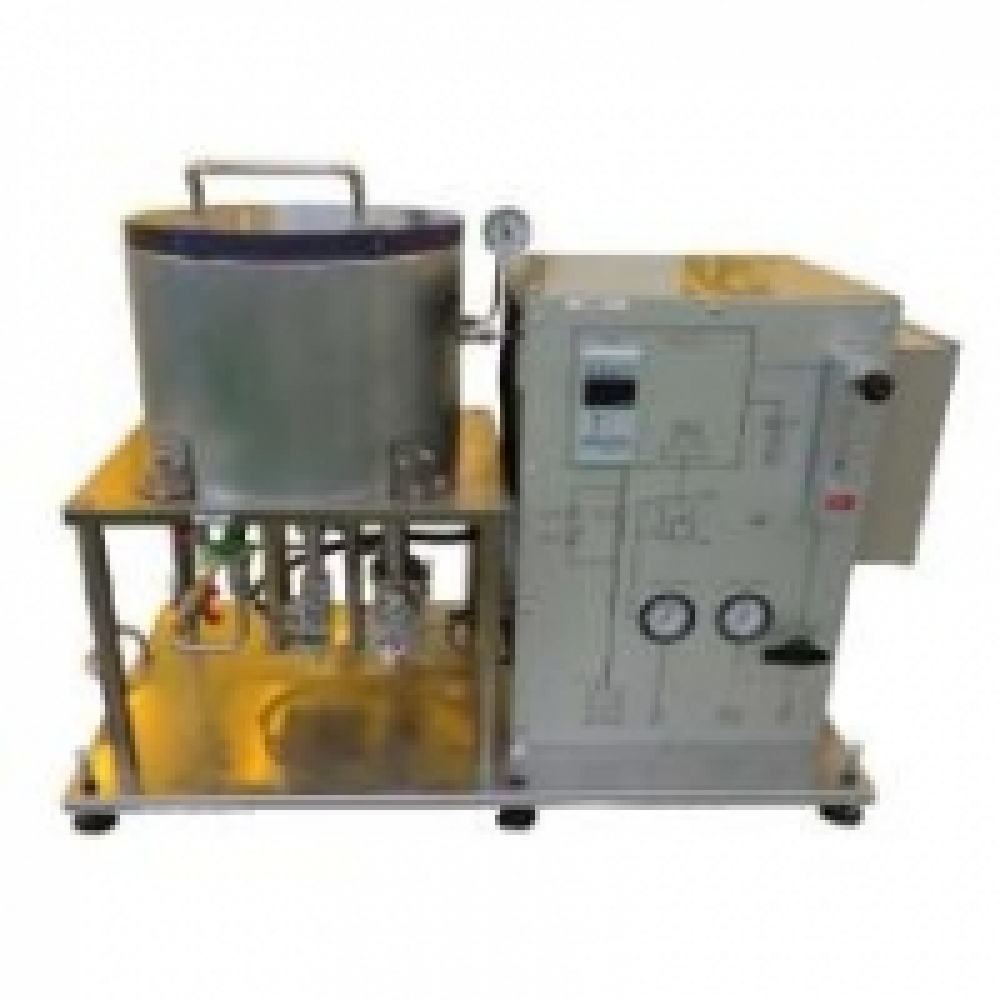

The Liquid Crystal Injector ECM01TYPE is a device for injecting liquid crystal into cells.

It enables easy injection of liquid crystal into empty cells just by setting an empty cell cassette and liquid crystal into the vacuum chamber and operating the valve on the manual operation panel.

The manual operation panel is designed as a circuit diagram, which facilitates operation. It is perfect for experimentally injecting liquid crystal into small cells.

[Features]

○Device for injecting liquid crystal into empty cells

○Manual operation panel designed as a circuit diagram, which facilitates operation

○Perfect for experimentally injecting liquid crystal into small cells

○Compatible work size: Max. 70mm wide × 90mm tall

Product Specifications

○Device external dimensions: 750mm wide × 400mm long × 600mm tall

○Device weight: Approx. 60kg

○Utilities

→Power source: Φ1 AC100V 10A

→Compressed air: 0.6MPa or higher; 5NL/min *Connecting parts: Φ6

→Nitrogen: 0.6MPa or higher; 50NL/min *Connecting parts: Φ6

→Exhaust: 0.25CMM *Connecting parts:Φ32

○Max. vacuum level: 4.0Pa

○Liquid crystal vertical drive: Cylinder-driven

○Chamber specifications: Aluminum chamber with transparent PVC lid

○Accessories

→1 cassette for empty cells (Set of 25 available)

→1 stainless steel liquid crystal dish
