Product Details

Motor drive provides constant speed! A scriber for scribing 300mm × 300mm glass panes.

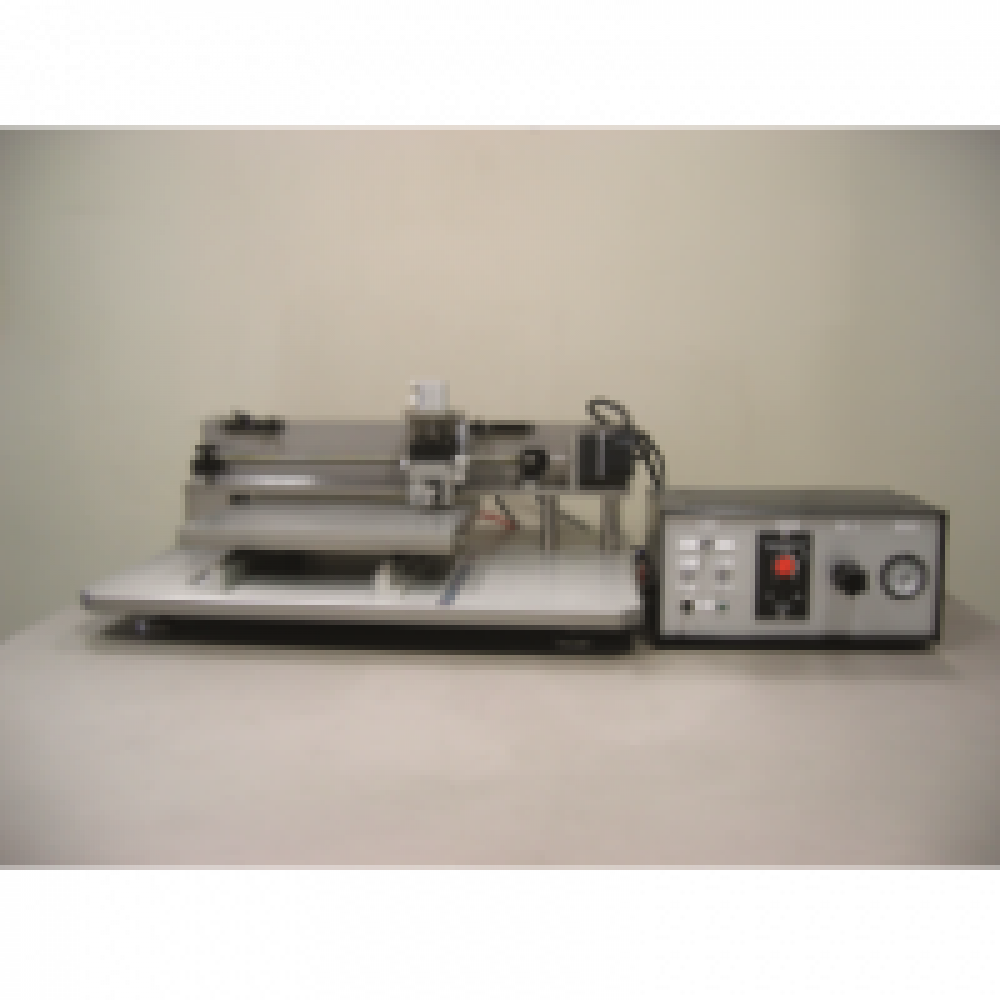

The “MHS-300” is a tabletop, semi-automatic device for scribing glass panes up to a maximum size of 300mm × 300mm.

The scribe head unit is motor-driven, which enables scribing at a constant speed.

On/Off, CW/CCW, Speed Up/Down are operated using toggle  switches.

[Features]

■Cutter push volume is set manually.

■Test pieces are held in place via vacuum suction using a manual open/close valve.

Product Specifications

■Number of scribe heads: 1 head

■Scribing method: Straight cuts

■Drive system: Adjustable between 0~40mm/sec using AC motor

■Scribe precision: ±0.2mm

■Cutter pressurization method: Spring pressurization

■Cutter tip: Super-hard foil cutter; Replaceable

■Glass dimensions: 300mm × 300mm (Max.) × 0.3～2mm t

■Utilities: AC100V; Vacuum pump included; Compressed air 0.5MPa

■External dimensions: 650 wide × 540mm long × 300mm tall
