Product Details

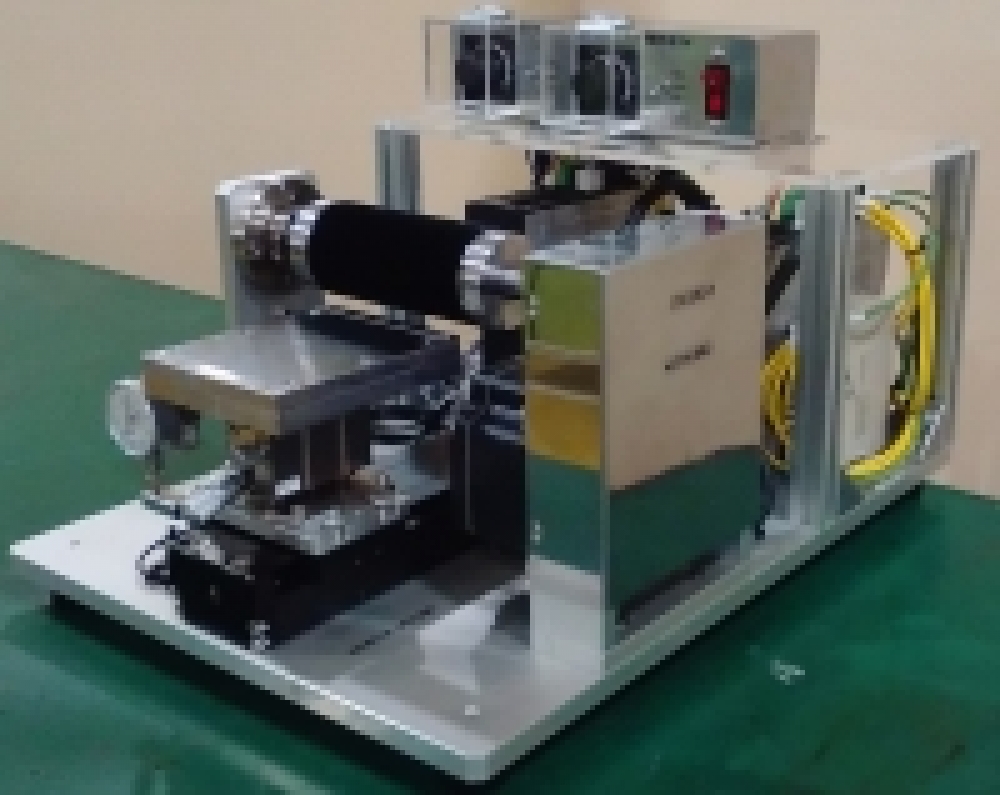

A table-top rubbing device for use with experimental prototypes. Simple to operate, and enables stable rubbing of glass substrates, film substrates, etc.

An easy-to-carry, super small-sized rubbing device with external dimensions of 320×440mm and a weight of 23kg.

Product Specifications

Rubbing roll revolutions and test piece platform movement are easy to operate using the volume knob and toggle switch.

Rubbing push volume is set by adjusting the height of the table.

[Overview]

Target sample size: Max. 100mm square substrate

Rubbing roll size: L＝100mm, Φ48mm

Rubbing roll revolution speed: Max. 3000rpm

Table movement speed: Max. 25mm/sec

Power source: Adapt to the voltage of each country.
